Road equipment – columns, posts and barriers

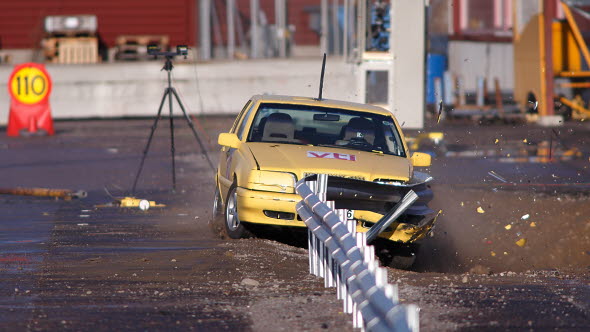

Crash test of a road barrier.
Photo: Hejdlösa bilder

The VTI crash safety laboratory performs tests of all types of roadside equipment, permanent as well as temporary equipment for example for work zones.

Crash testing of columns and post

A substantial part of road equipment are narrow support structures as columns, sign supports, signal head posts etc. These shall in general be CE-marked according to EN40 for wind loads. A supporting standard to En40 is the EN12767, describing the functionality of narrow objects during impact.

Testing according to EN 12767

The VTI crash laboratory holds a valid accreditation to run tests according to EN12767 for narrow support structures installed along national roads in Sweden.

Crash testing of barriers

From 2010 onwards, Swedish authorities require that all barriers mounted along the Swedish road network are also CE marked. Approved testing in accordance with EN 1317 is one of the prerequisites for obtaining CE marking. In the case of CE marking of crash barriers, VTI cooperates with RISE (Rise Research Institutes of Sweden) and/or Nordcert, which performs Factory Production Control and also acts as Notified Body for CE marking.

Testing according to EN 1317

EN1317 is a set of documents describing the various parts of a barrier and the functional requirements in case of an impact. The barrier itself, barrier ends, transitions between barriers, crash cushions and pedestrian parapets and motorcycle protection systems are all considered.

All barriers installed along the national Swedish road network must meet the requirements of the European testing method EN1317-2. Generally, EN1317-2 is a palette with ten different, gradually increasing levels of vehicle containment capacity depending on speed and weight.

Crash testing verifies whether barriers fulfil stipulated criteria. A widely requested containment level in Sweden is a level named N2. In this level the barrier shall fulfil stipulated criteria in two crash tests, namely:

  • A crash test with a small passenger car of 900 kg impacting the barrier with an angle of 20 degrees and a speed of 100 km/h
  • A crash test with a larger passenger car of 1 500 kg impacting the barrier with an angle of 20 degrees and a speed of 110 km/h.

In crash tests, several parameters are to be determined, such as vehicle trajectory and barrier deformation, as well as vehicle accelerations. To objectively compare these accelerations, a theoretical injury risk value named Acceleration Severity Index, ASI, is calculated. A barrier that successfully has passed all the mandatory requirements will get a performance classification based on the assessed containment levels, the determined barrier deformation and the acceleration values, converted by ASI calculation to a risk assessment level A, B or C.

In general, most of the containment classes demand at least two crash tests, although some of the low containment levels only demand one single test. On the other hand, for the high containment classes including buses and trucks, there are levels which demand three separate tests.

Testing according to NCHRPR 350 and MASH

NCHRPR350 and the updated version MASH is the American equivalent of EN 1317, and also a predecessor of EN1317. Road equipment in general and specifically barriers intended for the American market shall be tested and approved in accordance with this testing method. The VTI crash safety laboratory is one of few European facilities currently accepted by the Federal Highway Administration, FHWA, to conduct such tests in Europe for the American market.

Accredited testing

VTI performs accredited testing impartially and with confidentially according to EN ISO/IEC 17025:2017 and legal and authority requirements.
